5 1/2" API Non-rotating Bottom and top cement plug

Dongying Kangyu petroleum Engineering Technology Service Co.,Ltd
Contact Now
    Buy cheap 5 1/2" API Non-rotating Bottom and top cement plug from wholesalers

    Buy cheap 5 1/2" API Non-rotating Bottom and top cement plug from wholesalers
    • Buy cheap 5 1/2" API Non-rotating Bottom and top cement plug from wholesalers

    5 1/2" API Non-rotating Bottom and top cement plug

    Ask Lasest Price
    Brand Name : Kangyu
    Certification : API
    Model Number : casing size 4 1/2"-20"
    Price : 10-20 USD
    Delivery Time : 10-20 days,as your detailed quantity
    Payment Terms : 30%T/T in advance as deposit, balance before shipment
    Supply Ability : 100 set/week
    • Product Details
    • Company Profile

    5 1/2" API Non-rotating Bottom and top cement plug


    Product Name:Cement Plug


    Cement Plug Description :

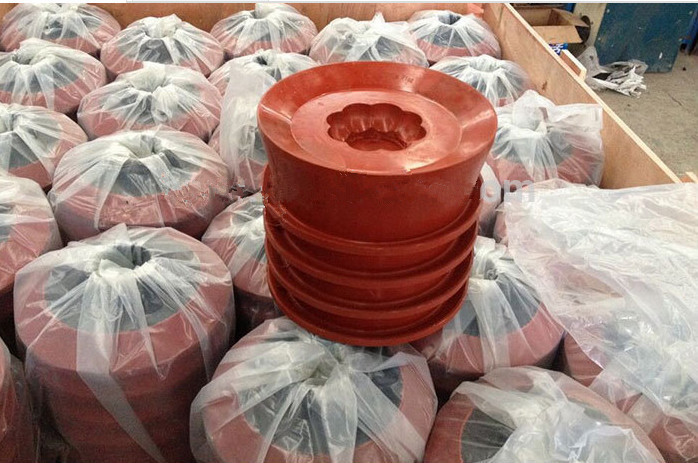

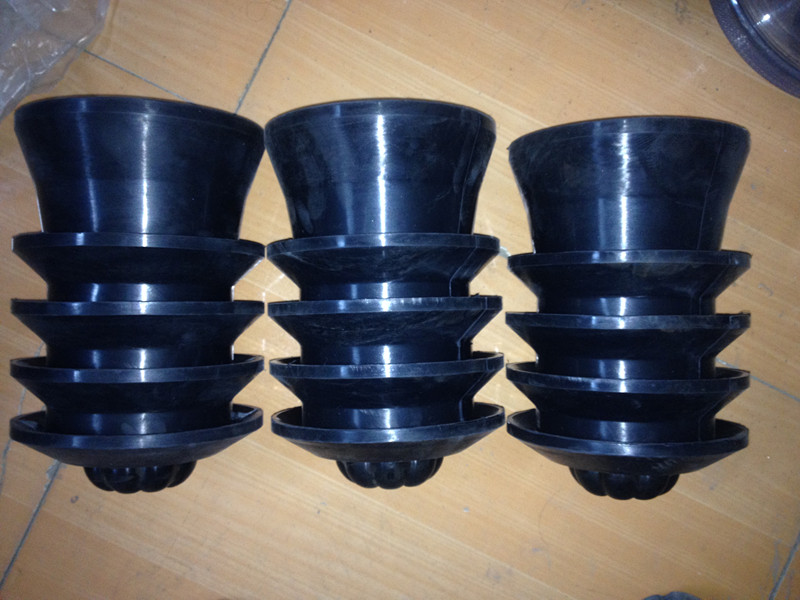

    A rubber plug used to separate the cement slurry from other fluids,reducing contamination and maintaining predicatble slurry performance. Two types of cementing plug are typically used on a cementing operation. The bottom plug is launched ahead of the cement slurry to minimize contamination by fluids inside the casing prior to cementing. A diaphragm in the plug body reptures to allow the cement slurry to pass through after the plug reaches the landing collar.The top plug has a solid body that provides positive indication of contact with the landing collar and bottom plug through an increase in pump pressure.Top and bottom pulg for cementing


    Technical Data:

    Casing size(in)casing weight rangeWiper Fin O.D
    mminmmin
    4 1/2"14.14-17.269.50-11.601104.331
    5"17.11-35.8611.50-24.101224.803
    5 1/2"20.83-39.8814.00-26.801355.315
    Casing size(in)casing weight rangeWiper Fin O.D
    mminmmin
    4 1/2"14.14-17.269.50-11.601104.331
    5"17.11-35.8611.50-24.101224.803
    5 1/2"20.83-39.8814.00-26.801355.315
    7"25.30-56.5517.00-38.001706.693
    7 5/8"35.72-63.6924.00-42.001857.283
    9 5/8"53.57-79.6236.00-53.502359.252
    10 3/4"60.27-97.7740.50-65.7026010.236
    13 3/8"71.43-107.1548.00-72.0033313.110
    20"139.89-197.9394.00-133.0049819.606

    7"25.30-56.5517.00-38.001706.693
    7 5/8"35.72-63.6924.00-42.001857.283
    9 5/8"53.57-79.6236.00-53.502359.252
    10 3/4"60.27-97.7740.50-65.7026010.236
    13 3/8"71.43-107.1548.00-72.0033313.110
    20"139.89-197.9394.00-133.0049819.606

    More information,please feel free to contact me.
